2.4 Cable Accessories
2.4.11ST LEGIONARY: Mini Cable Adjuster
The Mikro allows you to perfectly fine tune your gears or brakes whist on the fly. Don’t let its micro proportions confuse you, it delivers all the potency needed to ensure perfect shifting or hard responsive braking.

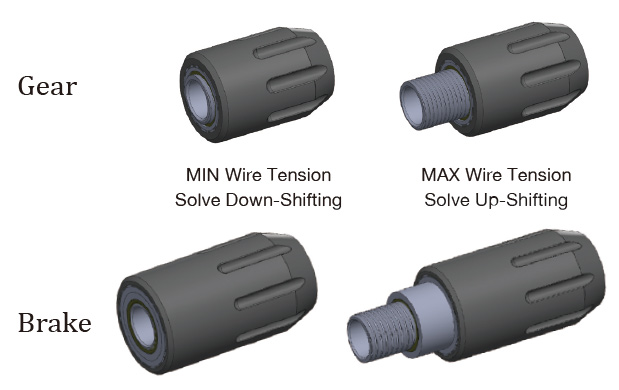

The Mikro is like an expandable section of outer housing, allowing you to increase or reduce cable wire tension.
GEAR : If your gears are always trying to down shift simply reduce tension by screwing up (making adjuster smaller) or conversely if they’re jumping up add more tension by screwing out (making longer).
BRAKE : If you need to quickly remove your wheel simply release lock & twist the brake adjuster 90 deg to release tension allowing brake caliper to fully open.
Remember to twist back again once wheel is replaced to bring the pads back close to the rim.
If the pads wear too much coursing excessive lever dead travel and limiting performance screw the adjuster out to bring the pads closer to the rim.

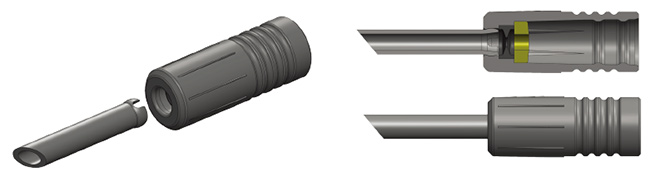

2.4.2TRIBUNE: Glass Reinforced Plastic Sealed Ferrules + Nose
The Legion TRIBUNE ferrules are like no other, put simply they are the best!
FEATURES:
Barbed Body Crush ribs on the outside guarantee perfect fit in all housings
Double Outer Seal Two annular protrusions on the inside guarantee water tight seal of outer casing
Inner wire seal Specially designed seal for the inner wire guarantees protection in the harshest environments without significant loss of cable efficiency.
Removable nose section Allows near frictionless performance in frame stops, but can simply be removed to allow installation in all systems types
Brass Insert Guarantees no damage to ferrule body from metallic parts of the outer casing
COHORT
| PHOTO | Range | ITEM NO. | TYPE | SIZE | MATERIAL | Unit | PACKAGE |
|---|---|---|---|---|---|---|---|
 |
Primus | CF-A-G-1-XX-W1 | Gear | 4.0 (Std outer) |
Fully Sealed, Aluminum |
Bottle | 100pcs/Bottle |
| CF-A-G-1-XX-S1 | Header Card | 10pcs Blister Card |
|||||
| CF-A-GB-1-XX-W1 | 4.5 (braided outer) |
Bottle | 100pcs/Bottle | ||||
| CF-A-GB-1-XX-S1 | Header Card | 10pcs Blister Card |
|||||
| CF-A-B-1-XX-W1 | Brake | 5.0 | Bottle | 100pcs/Bottle | |||
| CF-A-B-1-XX-S1 | Header Card | 6pcs Blister Card |
|||||
 |
Tribune | CF-P-G-1-W1 | Gear | 4.0 (Std outer) | Fully Sealed, 30% Glass Filled Nylon |
Bottle | 200pcs/Bottle |
| CF-P-GB-1-W1 | 4.5 (braided outer) |
||||||
| CF-P-B-1-W1 | Brake | 5.0 |
CENTURION
| PHOTO | Range | ITEM NO. | TYPE | SIZE | MATERIAL | Unit | PACKAGE |
|---|---|---|---|---|---|---|---|
 |
1st Centurion | CF-A-G-2-XX-W1 | Gear | 4.0 (Std outer) |
Aluminum | Bottle | 200pcs/Bottle |
| CF-A-G-2-XX-S1 | Header Card | 10pcs Blister Card |
|||||
| CF-A-GB-2-XX-W1 | 4.5 (braided outer) |
Bottle | 200pcs/Bottle | ||||
| CF-A-GB-2-XX-S1 | Header Card | 10pcs Blister Card |
|||||
| CF-A-B-2-XX-W1 | Brake | 5.0 | Bottle | 200pcs/Bottle | |||
| CF-A-B-2-XX-S1 | Header Card | 6pcs Blister Card |
|||||
 |
Optio | CF-P-G-2-W1 | Gear | 4.0 (Std outer) | 30% Glass Filled Nylon |
Bottle | 200pcs/Bottle |
| CF-P-GB-2-W1 | 4.5 (braided outer) |
||||||
| CF-P-B-2-W1 | Brake | 5.0 |
LEGIONARY
| PHOTO | Range | ITEM NO. | TYPE | SIZE | MATERIAL | Unit | PACKAGE |
|---|---|---|---|---|---|---|---|
 |
1st Legionary | CF-B-G-3-W1 | Gear | 4.0 (Std outer) |
Brass | Bottle | 200pcs/Bottle |
| CF-B-B-3-W1 | Brake | 5.0 | |||||
 |
Miles | CF-P-G-4-W1 | Gear-Nosed | 4.0 (Std outer) | Plastic | Bottle | 200pcs/Bottle |
| CF-P-B-4-W1 | Brake Nosed |
5.0 | |||||
 |
Tiro | CF-P-G-5-W1 | Gear | 4.0 (Std outer) | |||
| CF-P-B-5-W1 | Brake | 5.0 |
2.4.3Noodles
| Photo | Range | Type | Description | Part Number |
|---|---|---|---|---|
 |
||||
| Optio | Light Weight
Glass Reinforced Plastic |
+ SUS ferrule;70° or 90° 2PCS + Rain Boots | CN-AF-XX-S1 | |
| + SUS ferrule; 70° or 90° 100PCS | CN-AF-XX-W1 | |||
| Turma | 70° or 90° 2PCS + Rain Boots | CN-A-XX-S1 | ||
| 70° or 90° 100PCS | CN-A-XX-W1 | |||
| Munfix | Basic Stainless Steel | 70° or 90° 2PCS + Rain Boots | CN-B-XX-S1 | |
| 70° or 90° 100PCS | CN-B-XX-W1 |
2.4.4Donut
| Photo | Part Number | Description | Unit | Package |
|---|---|---|---|---|
 |
CD-I-G-BK-W1 | Fits 1.1-1.2mm Derailleur cables | Bottle | 600pcs/Bottle |
| CD-I-G-WH-W1 | ||||
| CD-I-B-BK-W1 | Fits 1.5-1.6mm Brake cables | |||
| CD-I-B-WH-W1 |
2.4.5Cable Tip
| Photo | Part Number | Description | Unit | Package |
|---|---|---|---|---|
 |
CT-A-G-XX-W1 | Fits 1.2mm cables & smaller | Bottle | 500pcs/Bottle |
| CT-A-B-XX-W1 | Fits 1.5mm cables & smaller | |||
| CT-A-U-MX-W1 | Fits 1.8mm cables & smaller |
2.4.6Frame Protector
| Photo | Part Number | Description | Unit | Package |
|---|---|---|---|---|
 |
CFP-G-SI | GEAR | Header Card | 2pcs/Blister Card |
| CFP-G-W1 | Bottle | 25pcs/Bottle | ||
| CFP-G-W2 | Bottle | 50pcs/Bottle | ||
| CFP-B-SI | BRAKE | Header Card | 2pcs/Blister Card | |
| CFP-B-W1 | Bottle | 25pcs/Bottle | ||
| CFP-B-W2 | Bottle | 50pcs/Bottle |
