Rim Brake Pads

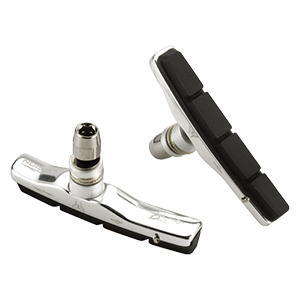

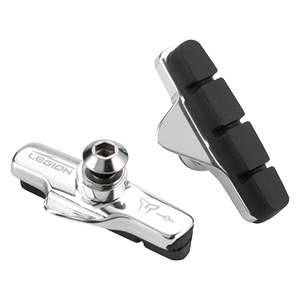

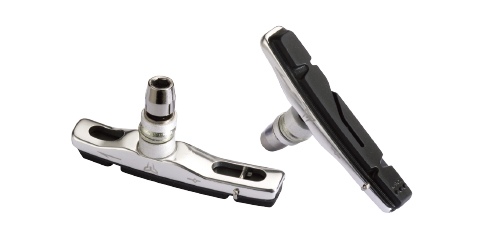

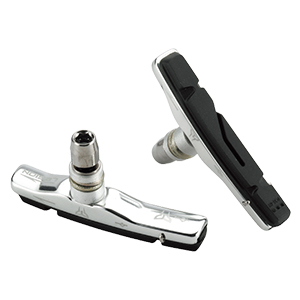

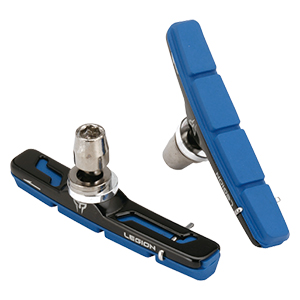

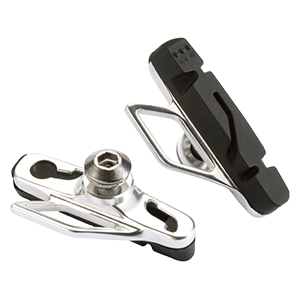

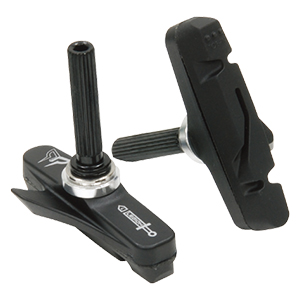

1.7.1.1OPTIO : UNIQUE LIGHT WEIGHT ANGLE ADJUSTABLE CARTRIDGE BRAKE
- Unique Light Weight Cartridge
- Fully Angle Adjustable
- Automatic Toe-In alignment, no noise - optional on P2
- Compatible with all OEM’s
For Part Number See Page 24

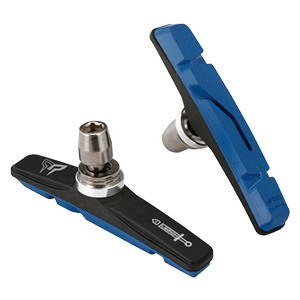

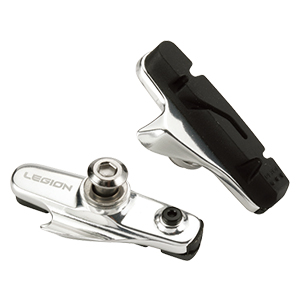

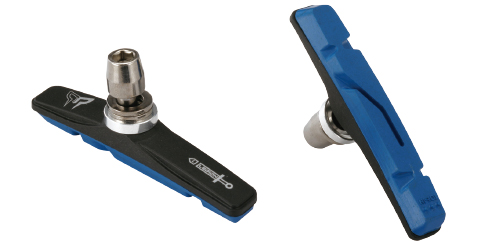

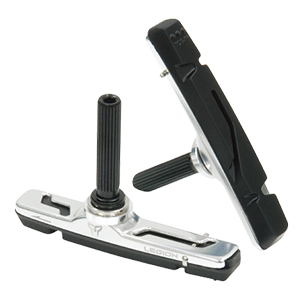

1.7.1.2TURMA : LIGHT WEIGHT 1PC BRAKE, ANGLE ADJUSTABLE
- Unique Light 1pc pad
- Fully Angle Adjustable
- Automatic Toe-In alignment, no noise - optional on P2
- Compatible with all OEM’s
Part Number: Rim Brake Pads

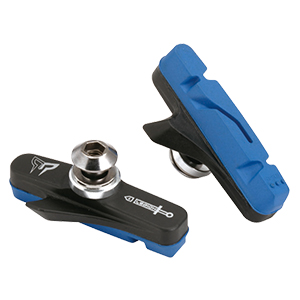

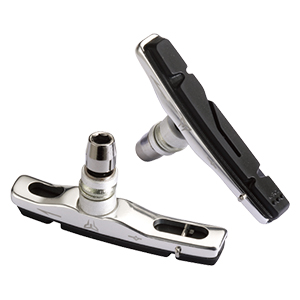

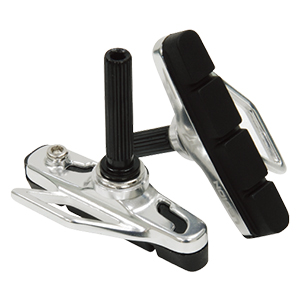

1.7.1.3TURMA : LIGHT WEIGHT 1PC BRAKE, ANGLE ADJUSTABLE
- Light Weight 2pc pad
- Angle Adjustable
- Automatic Toe-In alignment, no noise - optional on P2
- Compatible with all OEM’s
For Part Number See Page 24

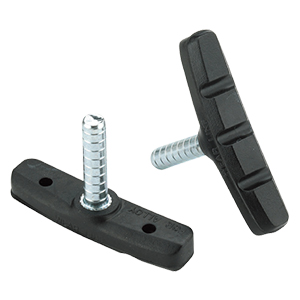

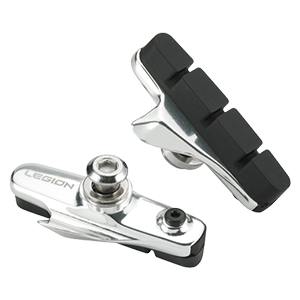

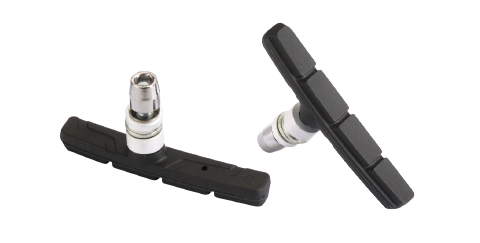

1.7.1.4MILES : BASIC CARTRIDGE BRAKE
- Basic 2pc pad
- Angle Adjustable
- Automatic Toe-In alignment, no noise - optional on P2
- Compatible with all OEM’s
For Part Number See Page 24

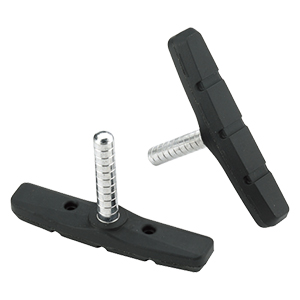

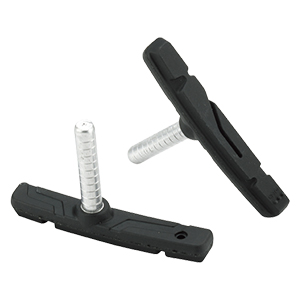

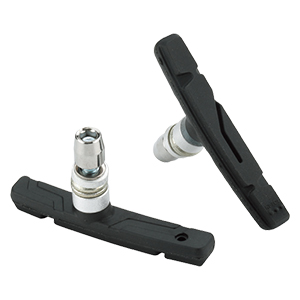

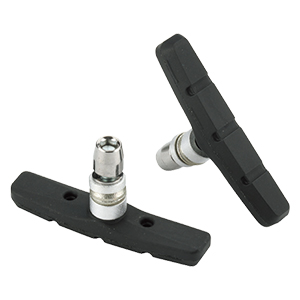

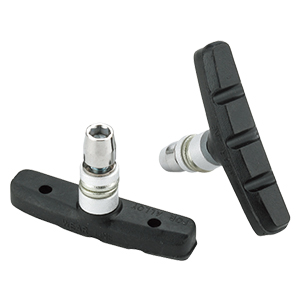

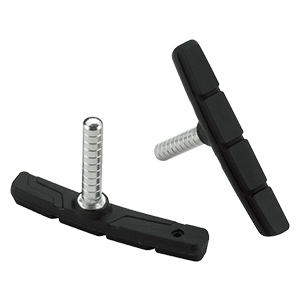

1.7.1.5TIRO : 1PC BASIC BRAKE
- Basic 1pc pad
- Angle Adjustable
- Automatic Toe-In alignment, no noise - optional on P2
- Compatible with all OEM’s

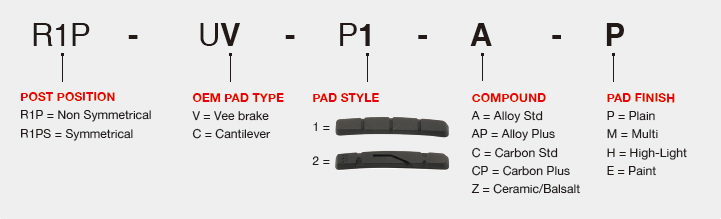

PAD LENGTH
P1= Style 1, 70mm long (STD)
P2= Style 2, 70mm long (STD)
P12= Style 1, 60mm long
Part Number: Rim Brake Pads

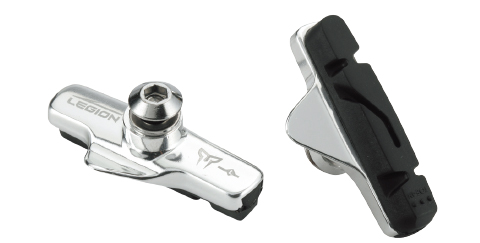

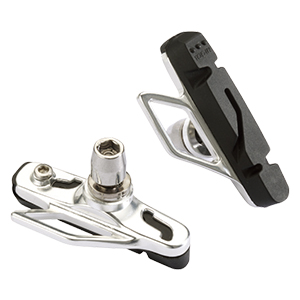

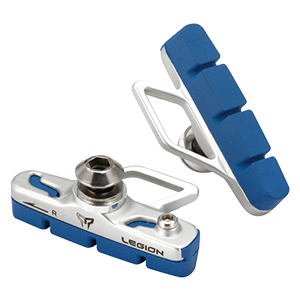

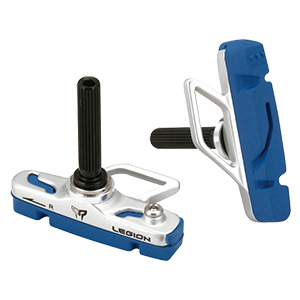

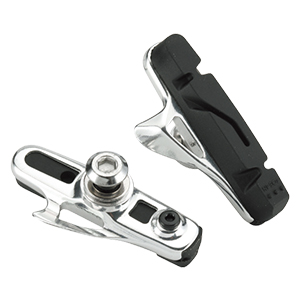

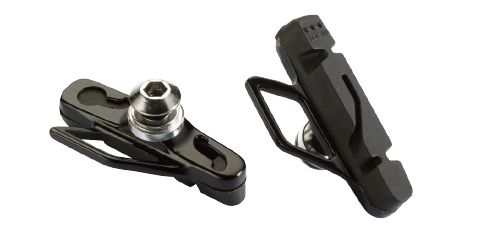

1.7.2.1OPTIO : UNIQUE LIGHT WEIGHT ANGLE ADJUSTABLE CARTRIDGE BRAKE
- Unique Light Weight Cartridge
- Fully Angle Adjustable
- Oversized Tire Deflector
- Automatic Toe-In alignment, no noise - optional on P2
- Compatible with all OEM’s
- Both Shimano and Campagnolo pad options
For Part Number See Page 23

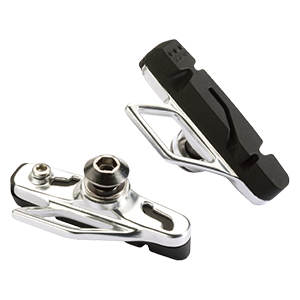

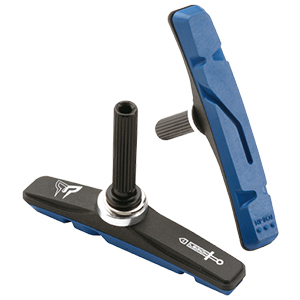

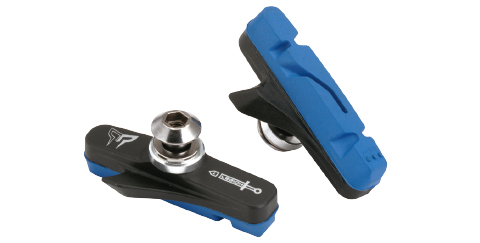

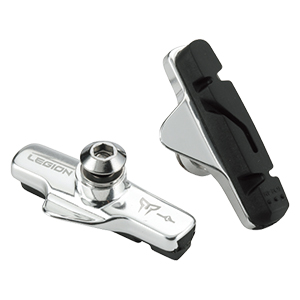

1.7.2.2TURMA : LIGHT WEIGHT 1PC BRAKE, ANGLE ADJUSTABLE
- Unique Light Weight 1 PC Pad
- Fully Angle Adjustable
- Automatic Toe-In alignment, no noise - optional on P2
- Compatible with all OEM’s
- Outstanding Aesthetics for 1pc option
For Part Number See Page 24

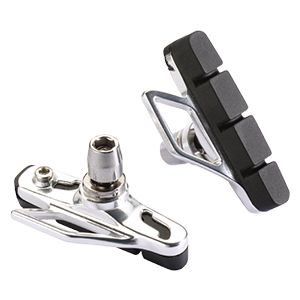

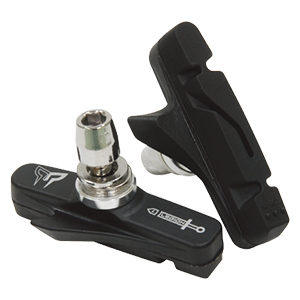

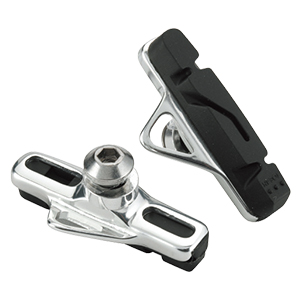

1.7.2.3TURMA : LIGHT WEIGHT CARTRIDGE BRAKE
- Light Weight 2pc pad
- Angle Adjustable
- Automatic Toe-In alignment, no noise - optional on P2
- Compatible with all OEM’s
Part Number: Rim Brake Pads

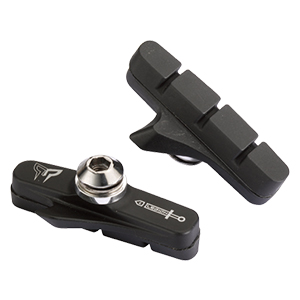

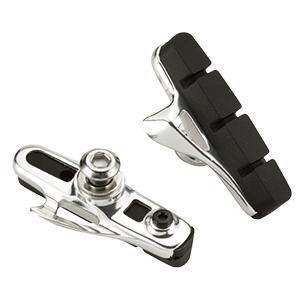

1.7.2.4MILES : 2PC BASIC CARTRIDGE BRAKE
- Basic 2pc pad
- Angle Adjustable
- Automatic Toe-In alignment, no noise - optional on P2
- Compatible with all OEM’s
Part Number: Rim Brake Pads
1.7.3 COMPOUND SELECTION
THE LEGION offers a standard range of specific compounds, that offer outstanding performance on all type of rims.
Alloy Compound:A
This is an outstanding compound that gives excellent performance on all alloy rims, giving market leading performance in both dry/wet conditions.
Carbon Compound:C
Developing rim specific compounds for selected OEMs THE LEGION has gained the necessary knowledge to allow year on year improvements, our carbon compound excels in wet/dry conditions whilst being rim friendly.
Ceramic Compound:Z
If you ride ceramic rims then the only compound you’ll want to use it the THE LEGION Pro-Ceramic…..its simply the best!
Comp-Trial Compound:CT
THE LEGION has developed a range of super sticky compounds specifically for trial use where you needs huge amounts of stopping power instantaneously, for this compound pad wear/noise take fourth place for the characteristics profile following performance, performance and performance!
Alloy plus:AP
For alloy rims or can be used as cross over for carbon
Carbon plus:CP
Specifically for carbon rims that are prone to thermal distortion on long descents

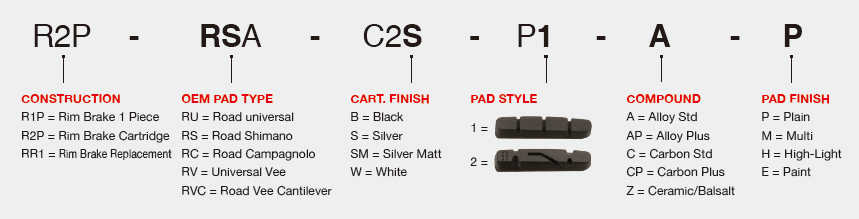

1.7.4 Standard Rim Range
ROAD: SHIMANO
R2P-RSA-C1S-P1-A-P
R2P-RSA-C2S-P1-A-P
R2P-RSA-C3S-P1-AP-P
RR1-RS-P1-A-P
R2P-RSA-C1S-P2-A-P
R2P-RSA-C2S-P2-A-P
R2P-RSA-C3S-P2-A-P
RR1-RS-P2-A-P
ROAD : CAMPAGNOLO
R2P-RCA-C1S-P1-A-P
R2P-RCA-C2S-P1-A-P
R2P-RCA-C3S-P1-A-P
RR1-RC-P1-AP-P
R2P-RCA-C1S-P2-A-P
R2P-RCA-C2S-P2-A-P
R2P-RCA-C3S-P2-A-P
RR1-RC-P2-A-P
ROAD : UNIVERSAL 1PC
R1P-RUA-P1-A-P
R1P-RUA-P2-AP-P
R1P-RVA-P2-A-P
R1P-RVCA-P2-A-P
MTB : 2PCS
R2P-UV-C1S-P1-A-P
R2P-UV-C1S-P2-A-P
R2P-UV-C2S-P1-A-P
R2P-UV-C2S-P2-A-P
R2P-UCA-C3S-P2-AP-P
R2P-UVA-C3B-P1-AP-P
R2P-RVA-C3S-P1-A-P
R2P-RVA-C3S-P2-A-P
R2P-UCA-C3S-P1-A-P
R2P-UCA-C3S-P2-A-P
R2P-RVCA-C3S-P1-A-P
R2P-RVCA-C3S-P2-AP-P
MTB : 1PCS
R1P-UVA-P2-AP-P
R1P-UCA-P2-AP-P
R1P-UV-P2-A-P
R1P-UC-P2-A-P
R1P-UV-P1-A-P
R1P-UC-P1-A-P
R1PS-UV-P1-A-P
R1PS-UC-P1-A-P
R1PS-UV-P12-A-P
R1PS-UC-P12-A-P
RR1-VS-P1-A-P
RR1-VS-P2-AP-P
