ADAPTORS

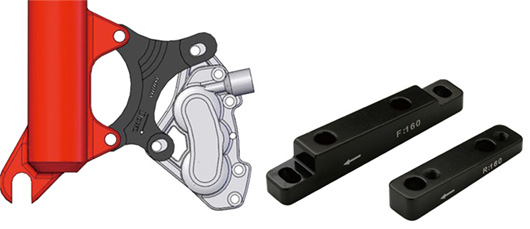

Frame/Fork Adaptors for DiSC
| Caliper | Frame/ Fork | Part Number | DiSC SIZE-TYPE | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Front 160 |
Rear 140 |
Front 180 |
Rear 160 |
Front 203 |
Rear 180 |
Rear 203 |
|||
| PM - IS | DBA-PM-IS-XX | 1 | 1 | 3 | 2 | 5 | 4 | 6 | |
| IS - IS | DBA-IS-IS-XX | 1 | 1 | 2 | 2 | ||||
| IS - PM | DBA-IS-PM-XX | 2 | 1 | ||||||
| PM - PM | DBA-PM-PM-XX | 1 | 1 | 2 | 2 | ||||
| FM - FM | DBA-FM-FM-XX | 1 | |||||||
| FM - PM | DBA-FM-PM-XX | 1 | |||||||
XX=Type

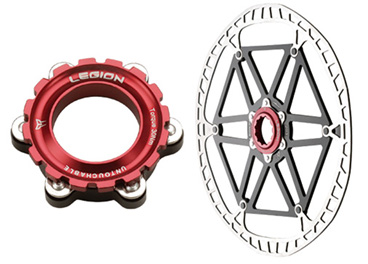

Center Lock Adaptors
| TYPE | Hub-Spec | Part Number |
|---|---|---|
| Type 1 | 9-10mm QR+12mm thur-axle | DCL-S-XX |
| Type 2 | 9-10mm QR+12-20mm thru-axle | DCL-T-XX |
XX=Color: SI=Silver, RD=Red, BU=Blue, GD=Gold, BK=Black

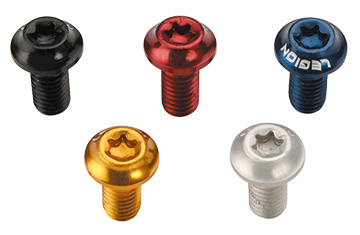

Disc Mounting Bolts
| PART NO | RANGE | Meterial | TORX | WEIGHT(g)/ PER PACK |
QTY |
|---|---|---|---|---|---|
| DRB-T-6 | Primus | Titanium | T25 | 7 | 6 |
| DRB-A-6-XX | 1ST Centurion | Aluminum7075 | T20 | 4.5 | 6 |
| DRB-A-B-XX | T20 | 75 | 100 | ||
| DRB-S-12-XX | 1ST Legionary | Steel 10B21 | T25 | 24.5 | 12 |
| DRB-S-B-XX | T25 | 204 | 100 |
XX=Color: SI=Silver, WH=White, RD=Red, BU=Blue, GD=Gold,BK=Black
