2.1 Inner Wire

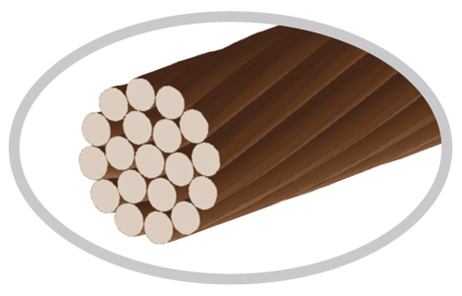

2.1.1PRIMUS:Stainless Steel Slick Nano Coated

Inner Wires- RNA: PRIMUS INNER-WIRE Stainless Steel Slick Nano Coated TYPE 1

The Legion Primus inner wires strands are specially coated prior to making the wire rope, unlike most coated inner wires which are done after so only the outer surface is coated.

The fine plasma mist electroplating coating process ensures uniform thickness of the friction reducing material, with excellent adhesion and a super fine silky surface; delivering enhanced environmental protection and unparalleled frictional performance. Another advantage of this process is as the individual stands are twisted together to form the rope the coatings light bond to each other, so when the wire is cut it doesn’t fray.

Stainless Steel
  • 19x Strands
  • Increased environmental protection
  • Reduced weight
Slick
  • Pre stretched to ensure 1 set-up
  • Surface smoothed for improved efficiency
Nano PTFE coated
  • Deep penetrating Plasma Sprayed coating
  • Near Frictionless surface delivering outstanding shifting performance
  • Extremely hardwearing, no flaking delivering extended endurance/life
  • Exceptional environmental protection
  • No fraying on cut cable ends
Market Type OEM Length
(mm)
Part Number
(Single Header Card)
Part Number
(Double Header Card)
Derailleur Universal
MTB/ROAD
Shimano
+
Campagnolo
2200 CI-1-G-SC-S1 CI-1-G-SC-S2
3100 CI-1-GT-SC-S1 CI-1-GT-SC-S2
Brake MTB Universal 1700 CI-1-B-MU-S1 CI-1-B-MU-S2
3500 CI-1-BT-MU-S1 CI-1-BT-MU-S2
Road Shimano
+
Campagnolo
1700 CI-1-B-RSC-S1 CI-1-B-RSC-S2
3500 CI-1-BT-RSC-S1 CI-1-BT-RSC-S2

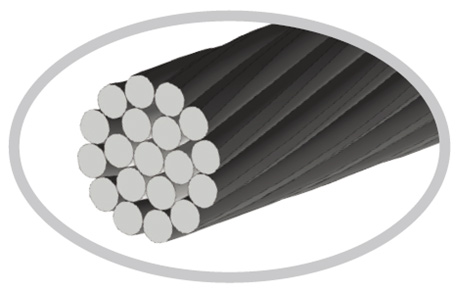

2.1.21ST CENTURION: Slick & PTFE Coated/Stainless Steel

Inner Wires-TCI:1ST CENTURION INNER-WIRE Slick & PTFE Coated/Stainless Steel TYPE 2

The Legion 1ST CENTURION inner wires strands are specially PTFE coated wire rope. Prior to coating process the rope is chemically modified to improve the bond strength of the PTFE to stainless steel surface, so unlike most of our competitors’ products it doesn’t peel off and choke the outer-casing liner PTFE gives the excellent long lasting ultra-low friction characteristics, improves environmental protection of the wire eliminating corrosion thereby delivery longlasting cable efficiency

Stainless Steel
  • 19x Strands
  • Increased environmental protection
  • Reduced weight
Slick
  • Pre stretched to ensure 1 set-up
  • Surface smoothed for improved efficiency
PTFE coated
  • Ultra low friction surface for improved efficiency
  • Hard wearing for endurance/life
Market Type OEM Length
(mm)
Part Number
(Single Header Card)
Part Number
(Double Header Card)
Part Number
(50 PCS/Work Shop)
Derailleur Universal
MTB/ROAD
Shimano 2100 CI-2-G-US-S1 CI-2-G-US-S2 CI-2-G-US-W1
3100 CI-2-GT-US-S1 CI-2-GT-US-S2 -
Campagnolo 2100 CI-2-G-UC-S1 CI-2-G-UC-S2 CI-2-G-UC-W1
3100 CI-2-GT-UC-S1 CI-2-GT-UC-S2 -
Brake MTB Universal 1700 CI-2-B-MU-S1 CI-2-B-MU-S2 CI-2-B-MU-W1
3500 CI-2-BT-MU-S1 CI-2-BT-MU-S2 -
Road Shimano 1700 CI-2-B-RS-S1 CI-2-B-RS-S2 CI-2-B-RS-W1
3500 CI-2-BT-RS-S1 CI-2-BT-RS-S2 -
Campagnolo 1700 CI-2-B-RC-S1 CI-2-B-RC-S2 CI-2-B-RC-W1
3500 CI-2-BT-RC-S1 CI-2-BT-RC-S2 -

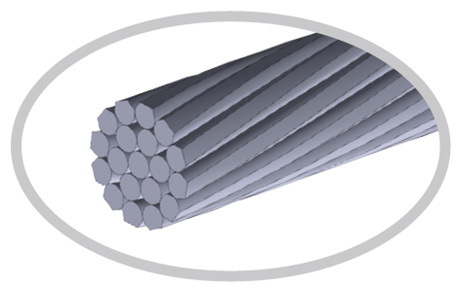

2.1.31ST CENTURION: Ground Stainless Steel

1ST CENTURION: Ground <small>Stainless Steel

The Legion 1st Centurion inner-wire is ground after being stretched, this is to ensure a supper fine face limiting friction, drastically improving cable efficiency delivering smooth operation.

Stainless Steel
  • 19x Strands
  • Increased environmental protection
  • Reduced weight
Ground Surface
  • Machined ultra-smooth surface for exceptional efficiency
  • None coated for consistent performance throughout life
Slick
  • Pre stretched to ensure 1 set-up

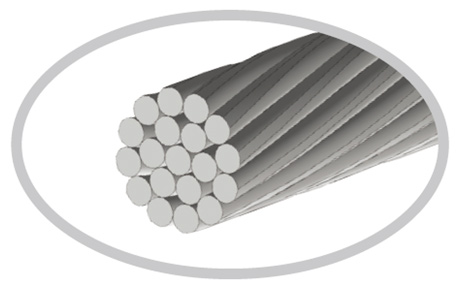

2.1.4OPTIO: Slick Stainless Steel

OPTIO: Slick Stainless Steel

The Legion Optio inner-wire is stretched after the “roping” process, this is to ensure no further stretching takes place during use, meaning 1-time set-up.

Stainless Steel
  • 19x Strands
  • Increased environmental protection
  • Reduced weight
Slick
  • Pre stretched to ensure 1 set-up

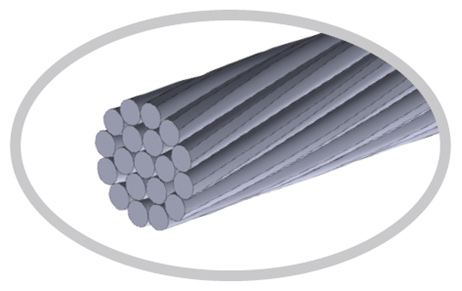

2.1.5TURMA: Stainless Steel

TURMA:Stainless Steel
Stainless Steel
  • 19x Strands
  • Increased environmental protection
  • Reduced weight

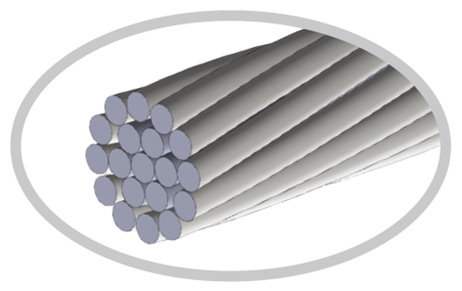

2.1.61ST LEGIONARY: Galvanized Steel , Slick

1ST LEGIONARY:Galvanized Steel , Slick
Stainless Steel
  • 19x Strands
  • Reduced weight
Galvanized
  • Reduced friction surface for improved efficiency
  • Environmental protection
Slick
  • Pre stretched to ensure 1 set-up
  • Surface smoothed for improved efficiency

2.1.7MILES: Galvanized Steel

MILES:Galvanized Steel
Stainless Steel
  • 19x Strands
  • Increased Strength
Galvanized
  • Reduced friction surface for improved efficiency
  • Environmental protection
Slick
  • Pre stretched to ensure 1 set-up
  • Surface smoothed for improved efficiency

2.1.8INNER WIRE PART NUMBER

INNER WIRE PART NUMBER
Market Type OEM Length
(mm)
Part Number
(Single Header Card)
Part Number
(Double Header Card)
Part Number
(100PCS/Work Shop)
Derailleur MTB/ROAD Universal 2100 CI-X-G-UU-S1 CI-X-G-UU-S2 CI-X-G-UU-W1
3100 CI-X-GT-UU-S1 CI-X-GT-UU-S2 -
Brake MTB Universal 1700 CI-X-B-MU-S1 CI-X-B-MU-S2 CI-X-B-MU-W1
3500 CI-X-BT-MU-S1 CI-X-BT-MU-S2 -
Road 1700 CI-X-B-RU-S1 CI-X-B-RU-S2 CI-X-B-RU-W1
3500 CI-X-BT-RU-S1 CI-X-BT-RU-S2 -
X = 3 1ST Centurion, 4 Optio, 5 Turma, 6 1ST Legionary, 7 Miles
