Hydraulic End Fittings

PRIMUS HY-DY Pat. Pending

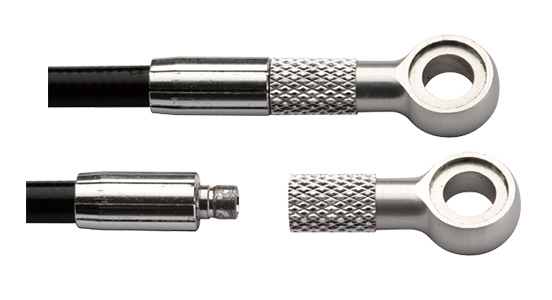

Hydraulic End Fittings-HY-DRY: PRIMUS HYDRALUIC QUICK RELEAS: Pat. Pending

PRIMUS end fittings allow you to rapidly disconnect and reconnect your brake caliper from the master-cylinders without losing brake performance. Quick closing stop-valves guarantee 100% dry disconnect time after time.

Ideal for the competitive rider that needs to remove the forks from the frame to allow stowing in travel bag.

TYPE Part Number
Banjo DHE-DY-UV-B
Straight DHE-DY-UV-S

OPTIO : HY-QK

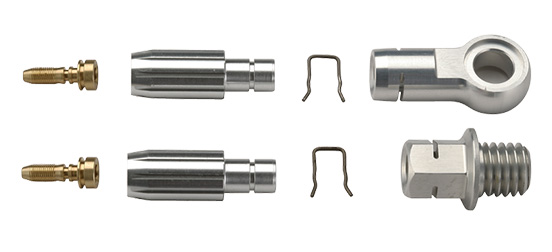

Hydraulic End Fittings-OPTIO HYDRALUIC END FITTINGS: Pat. Pending

OPTIO Hydraulic end fittings are fully reusable time after time additional and uniquely they are fully interchangeable, enabling you to switch hose from one OEM system to another rapidly.

Suitable for all brake systems.

TYPE Part Number
2x Banjo DHE-QK-UV-B
2x Straight DHE-QK-UV-S
2x Banjo DHE-QK-UV-M
2x Straight

1ST LEGIONARY HY

Photo Part Number TYPE Descriptio Shimano Magura Avid Hayes
Hydraulic End Fittings-Hydraulic End Fitting: DHE-S-SH-S DHE-S-SH-S Straight Connector Compression Nut
Bushing
Insert
x - - -
Hydraulic End Fittings-Hydraulic End Fitting: DHE-S-UV-B DHE-S-UV-B Banjo Connector Banjo Bolt Banjo Nut
2 O-ring
Banjo
Bushing
x x x x
Hydraulic End Fittings-Hydraulic End Fitting: DHE-S-MA-S DHE-S-MA-S Straight Connector Compression Nut
Bushing
Insert
- x - -
Hydraulic End Fittings-Hydraulic End Fitting: DHE-S-AV-S DHE-S-AV-S Straight Connector Compression Nut
Bushing
Insert
- - x x
Hydraulic End Fittings-Hydraulic End Fitting: DHE-S-VU-C DHE-S-VU-C Straight Convertor Convertor Housing
2 O-ring
Compression Nut
Bushing
- x x x
